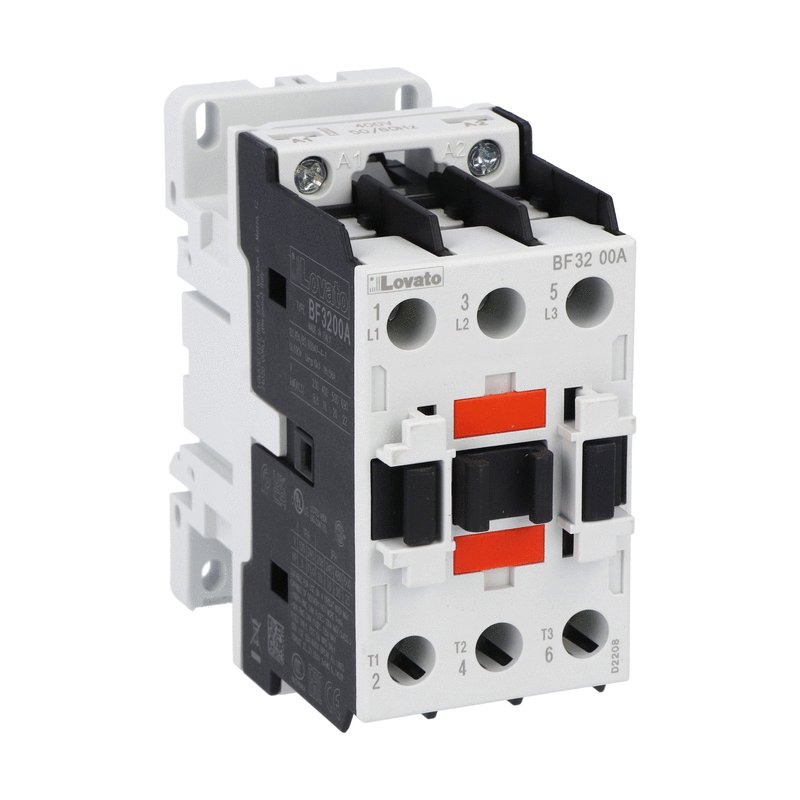

Lovato BF3200A024 3P CONTACTOR 32A 24V AC COIL 50/60Hz

BF3200A024

Compare

Three-pole contactor, IEC operating current Ie (AC3) = 32A, AC coil 50/60Hz, 24VAC

Type of product: ContactorsNumber of poles: 3Type of coil: AC coil 50/60HzRated coil voltage [V]: 24IEC operating current Ith (AC1) [A]: 56IEC operating current and power Ie (AC3) 400V [A/Kw]: 32A / 16KwUL/CSA horsepower ratings 480V [HP]: 20Type of mounting: Screw / DIN rail 35mm

Order code
BF3200A024

Weight [g]
432

Qty. per package
1

Multiple qty. of packs per order
1

Package dimensions [mm]
088X056X093

Volume [cm³]
458.304

Bar code [EAN13]
8013975161098

HS Code
85365080
