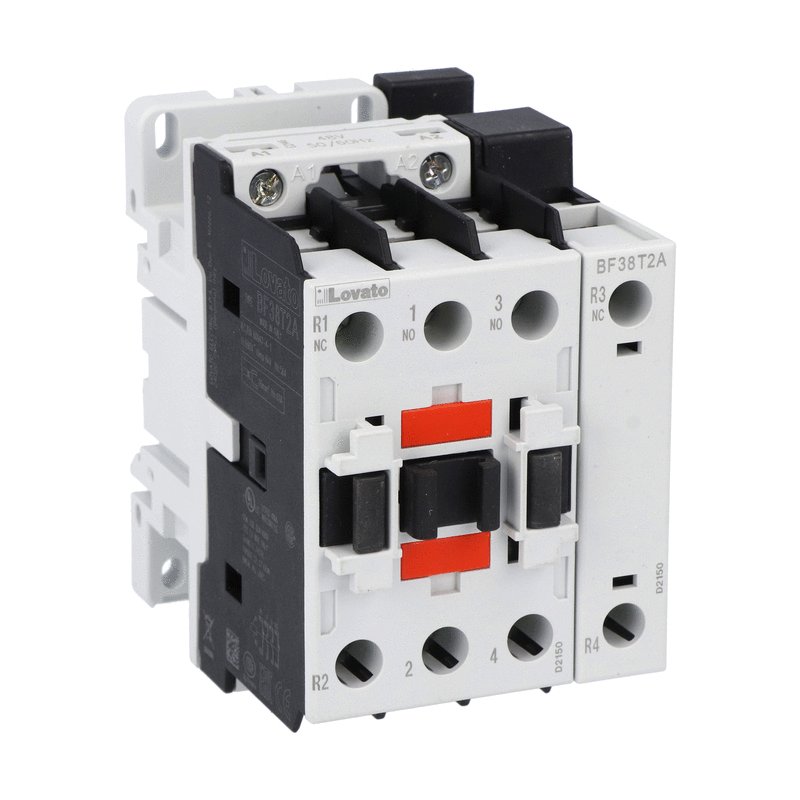

Lovato BF38T2A230 4P CONTACTOR 38A 2NO+2NC 230V AC COIL 50/60HZ

BF38T2A230

Compare

Four-pole contactor, IEC operating current Ith (AC1) = 56A, AC coil 50/60Hz, 230VAC, 2NO and 2NC

Type of product: ContactorsNumber of poles: 4Type of coil: AC coil 50/60HzRated coil voltage [V]: 230IEC operating current Ith (AC1) [A]: 56IEC operating current and power Ie (AC3) 400V [A/Kw]: 38A / 18.5KwUL/CSA horsepower ratings 480V [HP]: 30Type of mounting: Screw / DIN rail 35mm

Order code
BF38T2A230

Weight [g]
510

Qty. per package
1

Multiple qty. of packs per order
1

Package dimensions [mm]
097X065X090

Volume [cm³]
567.45

Bar code [EAN13]
8013975162323

HS Code
85365080
