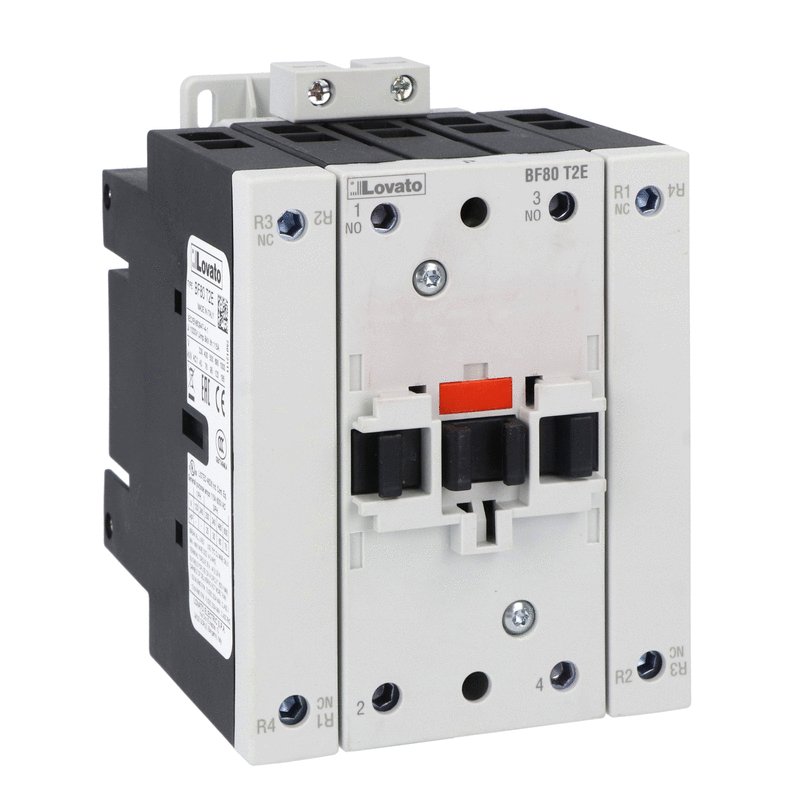

Lovato BF80T2E230 4P CONTACTOR 115A 2NO+2NC 100...250V AC/DC COIL

BF80T2E230

Compare

Four-pole contactor, IEC operating current Ith (AC1) = 115A, AC/DC coil, 230VAC/DC, 2NO and 2NC

Type of product: ContactorsNumber of poles: 4Type of coil: AC/DC coilRated coil voltage [V]: 100...250IEC operating current Ith (AC1) [A]: 115IEC operating current and power Ie (AC3) 400V [A/Kw]: 80A / 45KwUL/CSA horsepower ratings 480V [HP]: 60Type of mounting: Screw / DIN rail 35mm

Order code
BF80T2E230

Weight [g]
1342.9

Qty. per package
1

Multiple qty. of packs per order
1

Package dimensions [mm]
150X130X100

Volume [cm³]
1950

Bar code [EAN13]
8013975224229

HS Code
85365080
