Lovato BFS3222A230 SAFETY CONTACTOR 3P 32A AC3 230V 50/60HZ

BFS3222A230

Compare

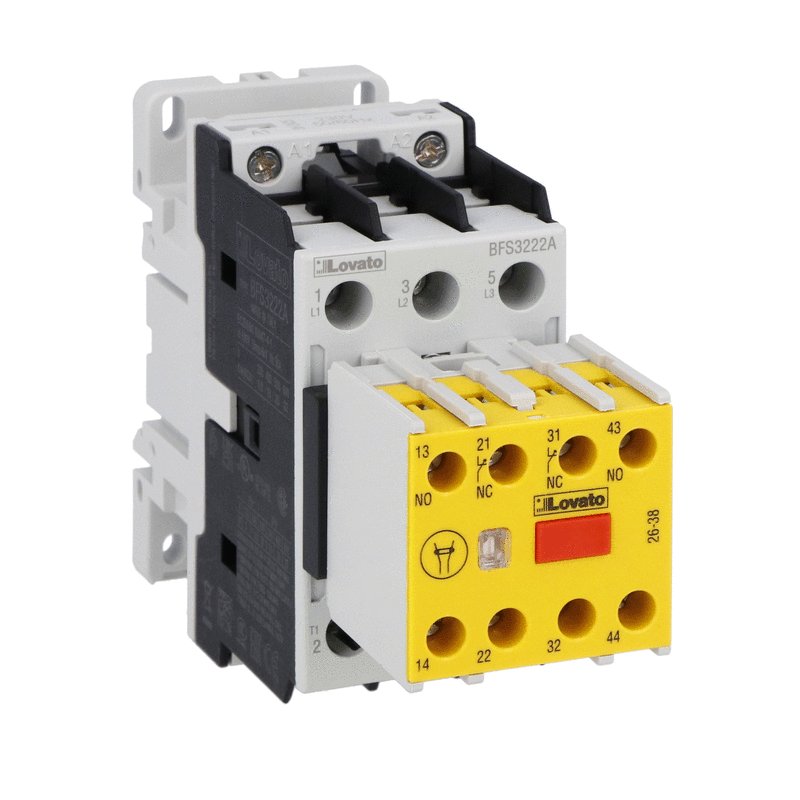

Three-pole safety contactor, IEC operating current Ie (AC3) = 32A, AC coil 50/60Hz, 230VAC, 2NO+2NC auxiliary contact

Type of product: ContactorsNumber of poles: 3Type of coil: AC coil 50/60HzRated coil voltage [V]: 230IEC operating current Ith (AC1) [A]: 56IEC operating current and power Ie (AC3) 400V [A/Kw]: 32A / 16KwUL/CSA horsepower ratings 480V [HP]: 20Type of built-in auxiliary contacts: 0Type of mounting: Screw / DIN rail 35mm

Order code
BFS3222A230

Weight [g]
500

Qty. per package
1

Multiple qty. of packs per order
1000

Package dimensions [mm]
150X050X100

Volume [cm³]
750

Bar code [EAN13]
8013975325933

HS Code
85365080
