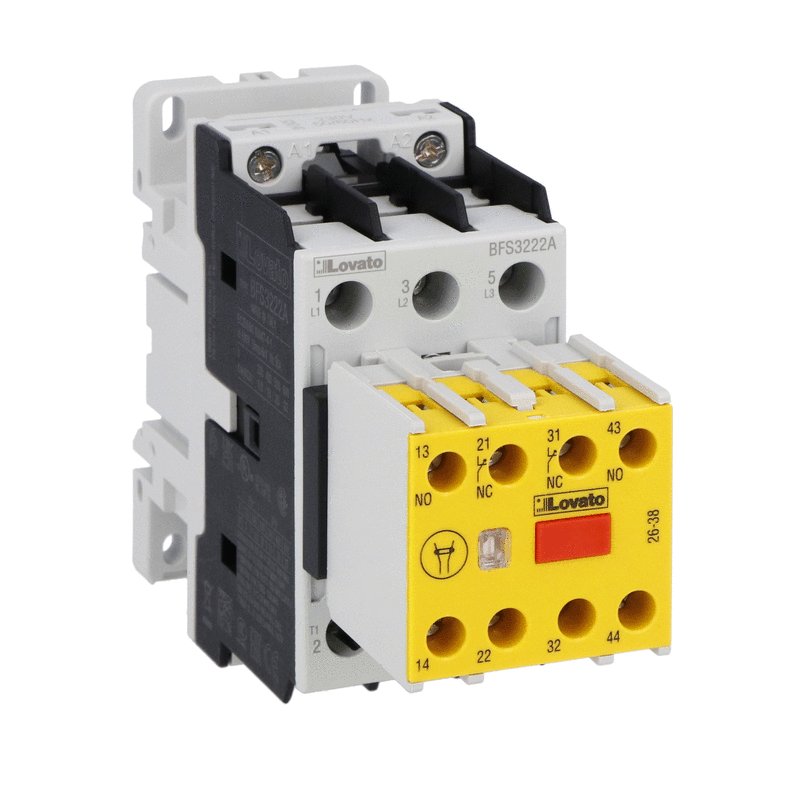

Lovato BFS3822A024 SAFETY CONTACTOR 3P 38A AC3 24V 50/60HZ

BFS3822A024

Compare

Three-pole safety contactor, IEC operating current Ie (AC3) = 38A, AC coil 50/60Hz, 24VAC, 2NO+2NC auxiliary contact

Type of product: ContactorsNumber of poles: 3Type of coil: AC coil 50/60HzRated coil voltage [V]: 24IEC operating current Ith (AC1) [A]: 56IEC operating current and power Ie (AC3) 400V [A/Kw]: 38A / 18.5KwUL/CSA horsepower ratings 480V [HP]: 30Type of built-in auxiliary contacts: 0Type of mounting: Screw / DIN rail 35mm

Order code
BFS3822A024

Weight [g]
500

Qty. per package
1

Multiple qty. of packs per order
1000

Package dimensions [mm]
150X050X100

Volume [cm³]
750

Bar code [EAN13]
8013975325957

HS Code
85365080
