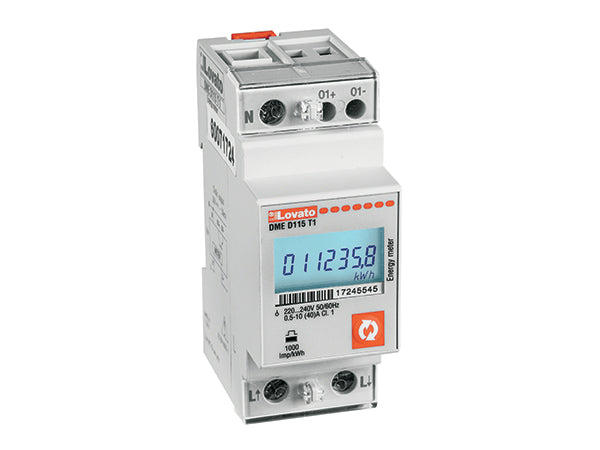

DMED115T1
Compare
Energy meter, single-phase, non expandable, digital with backlight LCD display, 40A direct connection, 2U, 1 programmable static output, multi-measurements, 220...240VAC
Type of product: Energy meters - Single-phaseType of installation: DIN rail mountingType of current connection: DirectIEC maximum current (Imax) [A]: 40Type of energy measurement: Imported active energy and imported reactive energyAccuracy active energy measurement: Class 1 (IEC/EN 62053-21)Reactive energy: Class 2 (IEC/EN 62053-23)Current harmonic analysis: NoBuilt-in communication port: NoExpandable: NoMID certified: No
Order code
DMED115T1
Weight [g]
140
Qty. per package
1
Multiple qty. of packs per order
1
Package dimensions [mm]
095X040X075
Volume [cm³]
285
Bar code [EAN13]
8013975211168
HS Code
90283011
