DMED120T1MID
Compare

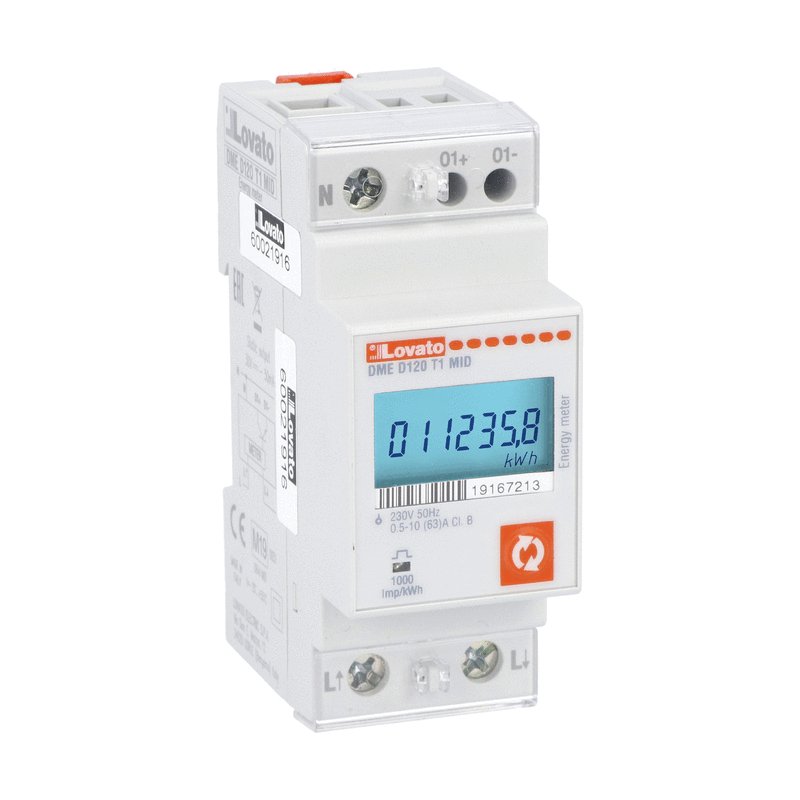

Energy meter, single-phase, MID certified, non expandable, 63A direct connection, 2U, 1 programmable static output, multi-measurements, 230VAC
Type of product: Energy meters - Single-phaseType of installation: DIN rail mountingType of current connection: DirectIEC maximum current (Imax) [A]: 63Type of energy measurement: Imported active energy and imported reactive energyAccuracy active energy measurement: Class B (EN 50470-3)Reactive energy: Class 2 (IEC/EN 62053-23)Current harmonic analysis: NoBuilt-in communication port: NoExpandable: NoMID certified: Imported active energy
Order code
DMED120T1MID
Weight [g]
152
Qty. per package
1
Multiple qty. of packs per order
1
Package dimensions [mm]
095X040X075
Volume [cm³]
285
Bar code [EAN13]
8013975188736
HS Code
90283011
