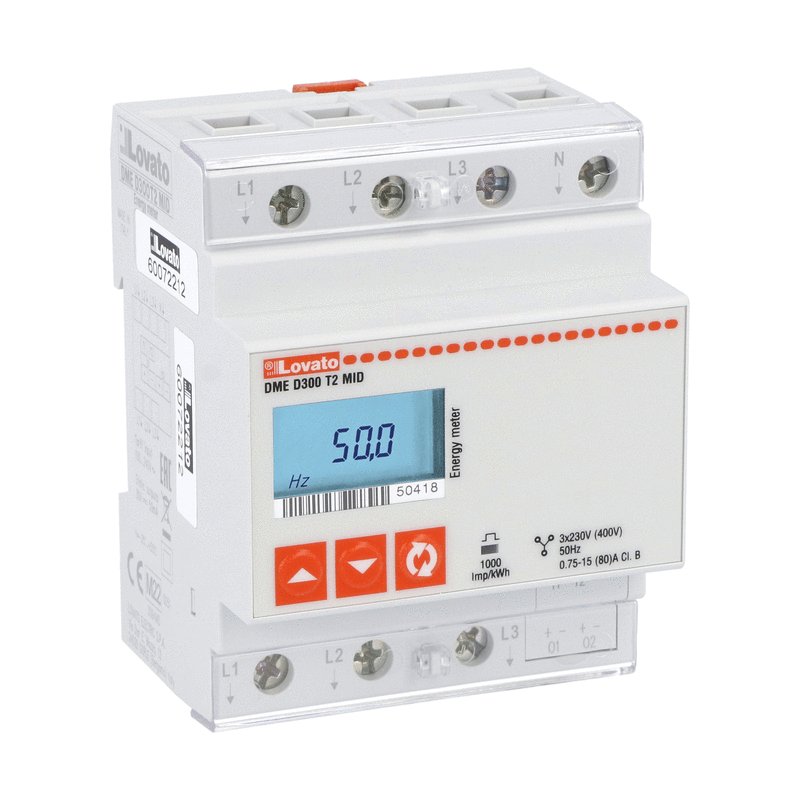

DMED300T2MID
Compare
Energy meter, three-phase with neutral, non expandable, MID certified, 80A direct connection, 4U, 2 programmable static outputs, multi-measurements
Type of product: Energy meters - Three-phaseType of installation: DIN rail mountingType of current connection: DirectIEC maximum current (Imax) [A]: 80Type of energy measurement: Imported/exported active energy and imported/exported reactive energyAccuracy active energy measurement: Class B (EN 50470-3)Reactive energy: Class 2 (IEC/EN 62053-23)Current harmonic analysis: NoBuilt-in communication port: NoExpandable: NoMID certified: Imported active energy
Order code
DMED300T2MID
Weight [g]
360
Qty. per package
1
Multiple qty. of packs per order
1
Package dimensions [mm]
150X110X090
Volume [cm³]
1485
Bar code [EAN13]
8013975199909
HS Code
90283019
