DMED301UL
Compare

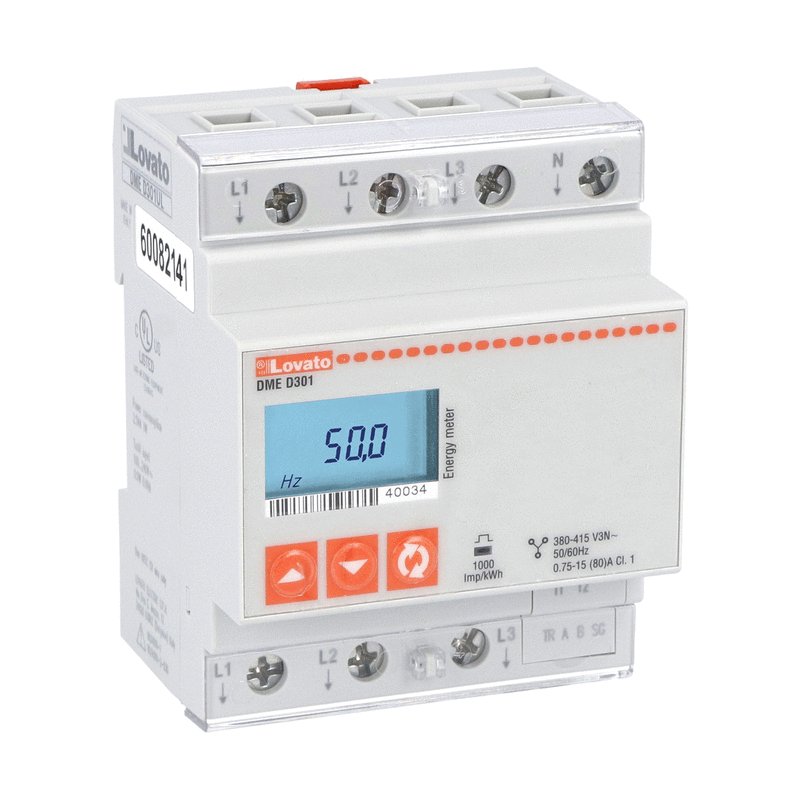

Energy meter, three-phase with neutral, non expandable, 80A direct connection, 4U, RS485 interface, multi-measurements. cULus version
Type of product: Energy meters - Three-phaseType of installation: DIN rail mountingType of current connection: DirectIEC maximum current (Imax) [A]: 80Type of energy measurement: Imported/exported active energy and imported/exported reactive energyAccuracy active energy measurement: Class 1 (IEC/EN 62053-21)Reactive energy: Class 2 (IEC/EN 62053-23)Current harmonic analysis: NoBuilt-in communication port: RS485Expandable: NoMID certified: No
Order code
DMED301UL
Weight [g]
381
Qty. per package
1
Multiple qty. of packs per order
1
Package dimensions [mm]
153X117X092
Volume [cm³]
1646
Bar code [EAN13]
8013975268292
HS Code
90283019
