DMED330
Compare

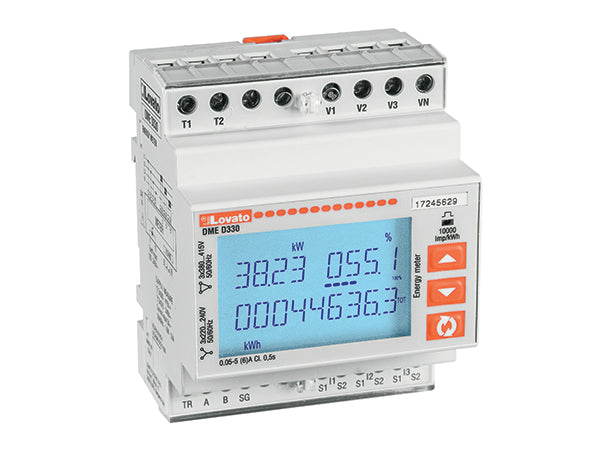

Energy meter, three-phase with or without neutral, non expandable, connection by CT /5A secondary, 4U, RS485 interface, multi-measurements
Type of product: Energy meters - Three-phaseType of installation: DIN rail mountingType of current connection: CT /5A /1AIEC maximum current (Imax) [A]: 5Type of energy measurement: Imported/exported active energy and imported/exported reactive energyAccuracy active energy measurement: Class 0.5s (IEC/EN 62053-22)Reactive energy: Class 2 (IEC/EN 62053-23)Current harmonic analysis: NoBuilt-in communication port: RS485Expandable: NoMID certified: No
Order code
DMED330
Weight [g]
280
Qty. per package
1
Multiple qty. of packs per order
1
Package dimensions [mm]
150X110X090
Volume [cm³]
1485
Bar code [EAN13]
8013975217320
HS Code
90283019
