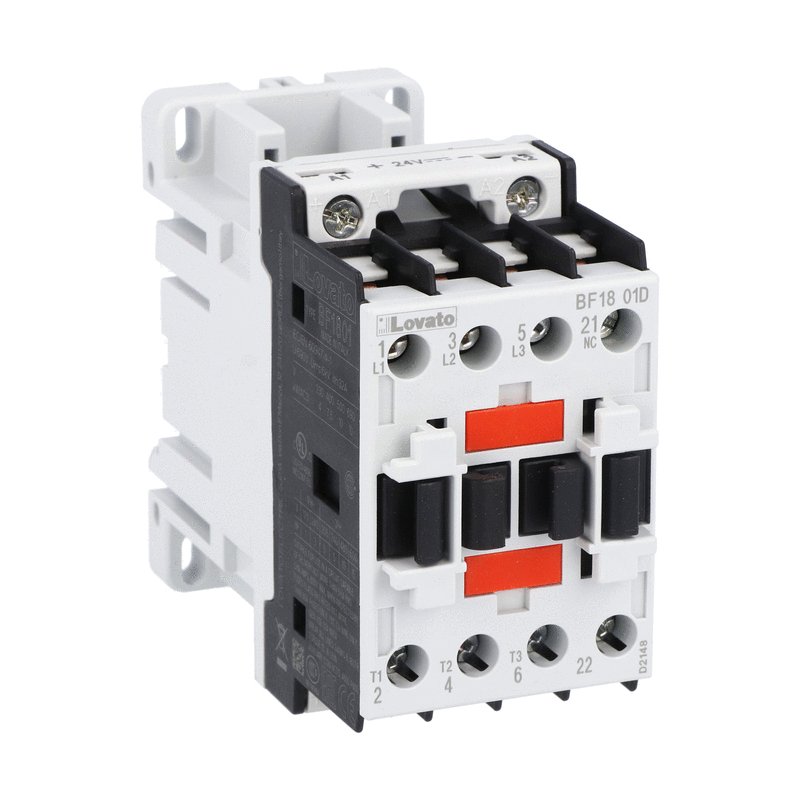

Lovato BF1801D060 3P CONTACTOR 1NC 18A 60VDC

BF1801D060

Compare

Three-pole contactor, IEC operating current Ie (AC3) = 18A, DC coil, 60VDC, 1NC auxiliary contact

Type of product: ContactorsNumber of poles: 3Type of coil: DC coilRated coil voltage [V]: 60IEC operating current Ith (AC1) [A]: 32IEC operating current and power Ie (AC3) 400V [A/Kw]: 18A / 7.5KwUL/CSA horsepower ratings 480V [HP]: 10Type of built-in auxiliary contacts: 1NCType of mounting: Screw / DIN rail 35mm

Order code
BF1801D060

Weight [g]
496

Qty. per package
1

Multiple qty. of packs per order
1

Package dimensions [mm]
093X048X110

Volume [cm³]
491.04

Bar code [EAN13]
8013975166284

HS Code
85365080
