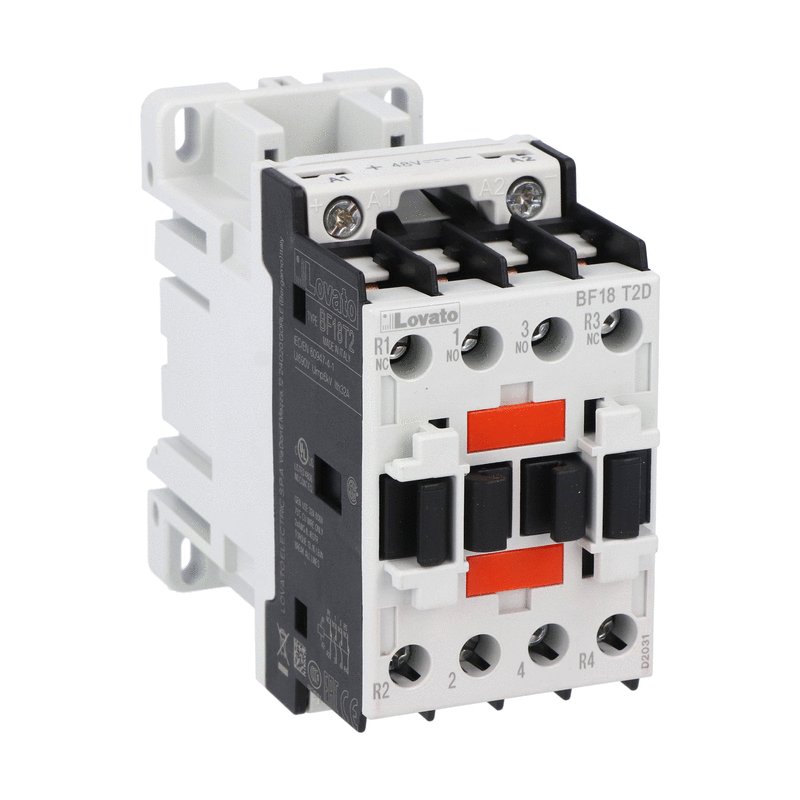

Lovato BF18T2D110 4P CONTACTOR 2NO+2NC 32A AC1 110VDC

BF18T2D110

Compare

Four-pole contactor, IEC operating current Ith (AC1) = 32A, DC coil, 110VDC, 2NO and 2NC

Type of product: ContactorsNumber of poles: 4Type of coil: DC coilRated coil voltage [V]: 110IEC operating current Ith (AC1) [A]: 32IEC operating current and power Ie (AC3) 400V [A/Kw]: 18A / 7.5KwUL/CSA horsepower ratings 480V [HP]: 10Type of mounting: Screw / DIN rail 35mm

Order code
BF18T2D110

Weight [g]
500

Qty. per package
1

Multiple qty. of packs per order
1

Package dimensions [mm]
093X048X110

Volume [cm³]
491.04

Bar code [EAN13]
8013975167069

HS Code
85365080
