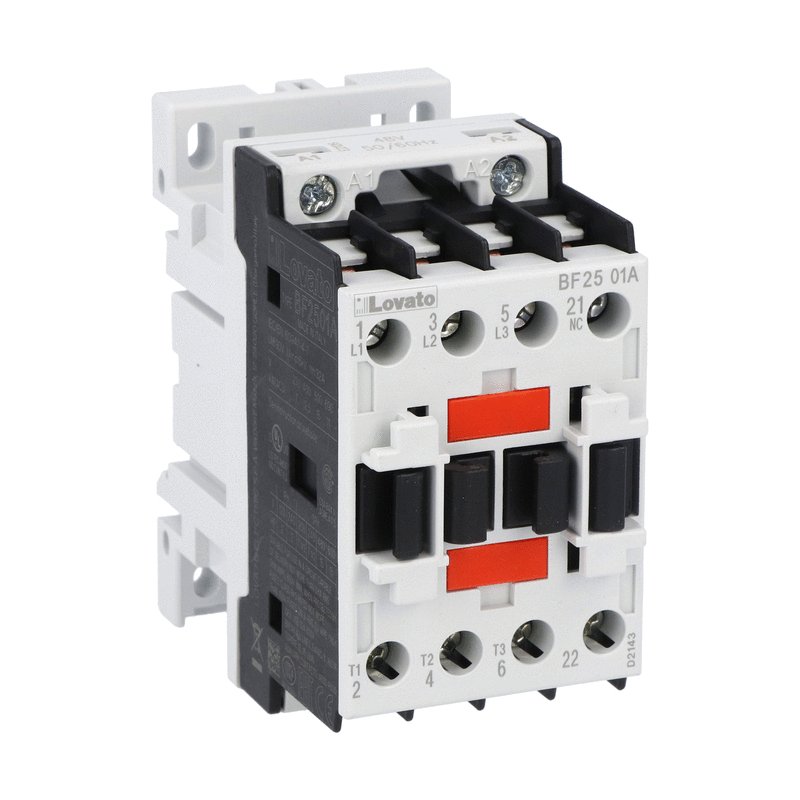

Lovato BF2501A12060 3P CONTACTOR 25A 1NC 120V AC COIL

BF2501A12060

Compare

Three-pole contactor, IEC operating current Ie (AC3) = 25A, AC coil 60Hz, 120VAC, 1NC auxiliary contact

Type of product: ContactorsNumber of poles: 3Type of coil: AC coil 60HzRated coil voltage [V]: 120IEC operating current Ith (AC1) [A]: 32IEC operating current and power Ie (AC3) 400V [A/Kw]: 25A / 12.5KwUL/CSA horsepower ratings 480V [HP]: 15Type of built-in auxiliary contacts: 1NCType of mounting: Screw / DIN rail 35mm

Order code
BF2501A12060

Weight [g]
356

Qty. per package
1

Multiple qty. of packs per order
1

Package dimensions [mm]
090X047X086

Volume [cm³]
363.78

Bar code [EAN13]
8013975165126

HS Code
85365080
