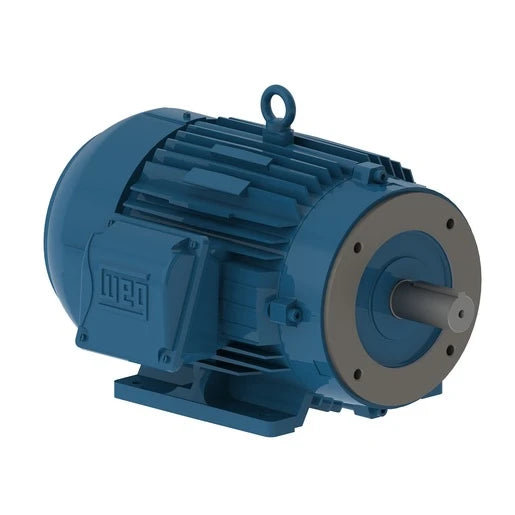

WEG - NEMA Premium Efficiency Motor 184T 5HP, Model: 00518ET3E184TF3-W22
- Frame 184T
-
Output 5 HP (3.7 kW)
-
Number of Poles 4
-
Frequency 60 Hz
-
Rated speed 1750 rpm
-
Slip 2.78 %
-
Rated voltage 230/460 V
-
Rated current 13.0/6.49 A
-
L. R. Amperes 97.4/48.7 A
-
LRC 7.5x(Code J)
-
No load current 5.80/2.90 A
-
Rated torque 15.0 ft.lb
-
Locked rotor torque 229 %
-
Breakdown torque 290 %
-
Locked rotor time 27s (cold) 15s (hot)
-
Moment of inertia (J) 0.4003 sq.ft.lb
-
Design B
-
Insulation Class F
-
Service factor 1.25
-
Temperature rise 80 K
-
Duty Cycle Cont.(S1)
-
Starting Method Direct On Line
-
Ambient temperature -20°C to +40°C
-
Altitude 1000 m.a.s.l.
-
Degree of Protection IP55
-
Enclosure IC411 - TEFC
-
Mounting F-3
-
Rotation¹ Both (CW and CCW)
-
Noise level² 56.0 dB(A)
-
Approx. weight³ 97.1 lb
-
