DMED120T1A120
Compare

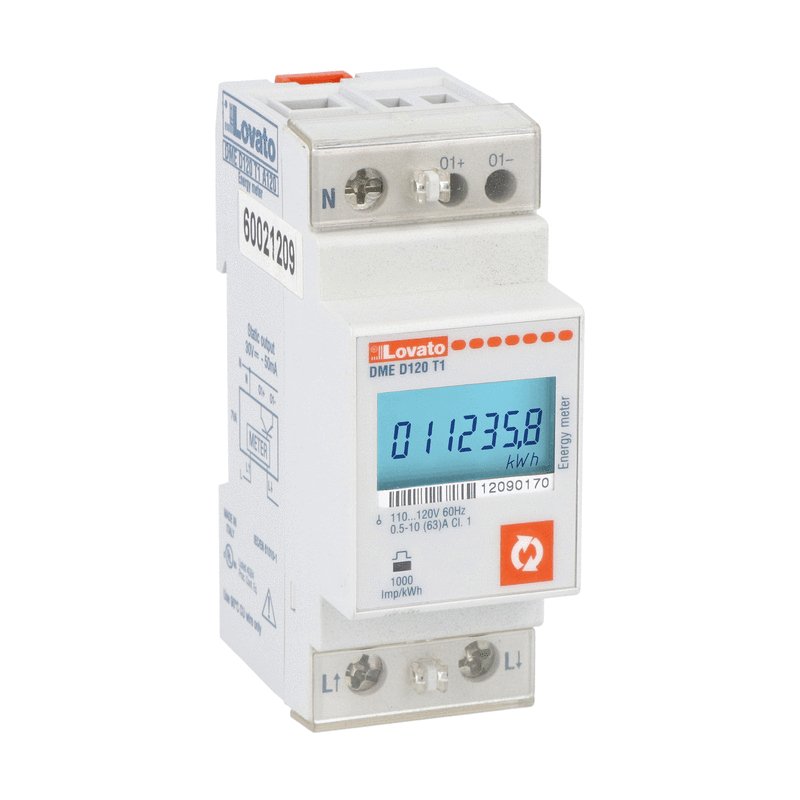

Energy meter, single-phase, non expandable, digital with backlight LCD display, 63A direct connection, 2U, 1 programmable static output, multi-measurements, 110...120VAC
Type of product: Energy meters - Single-phaseType of installation: DIN rail mountingType of current connection: DirectIEC maximum current (Imax) [A]: 63Type of energy measurement: Imported active energy and imported reactive energyAccuracy active energy measurement: Class 1 (IEC/EN 62053-21)Reactive energy: Class 2 (IEC/EN 62053-23)Current harmonic analysis: NoBuilt-in communication port: NoExpandable: NoMID certified: No
Order code
DMED120T1A120
Weight [g]
148
Qty. per package
1
Multiple qty. of packs per order
1
Package dimensions [mm]
095X040X075
Volume [cm³]
285
Bar code [EAN13]
8013975189399
HS Code
90283011
